Built for maximum usability and utility, the cabinet’s PDU mounting brackets accommodate most standard PDU heights and allow for toolless mounting and easy adjustment.

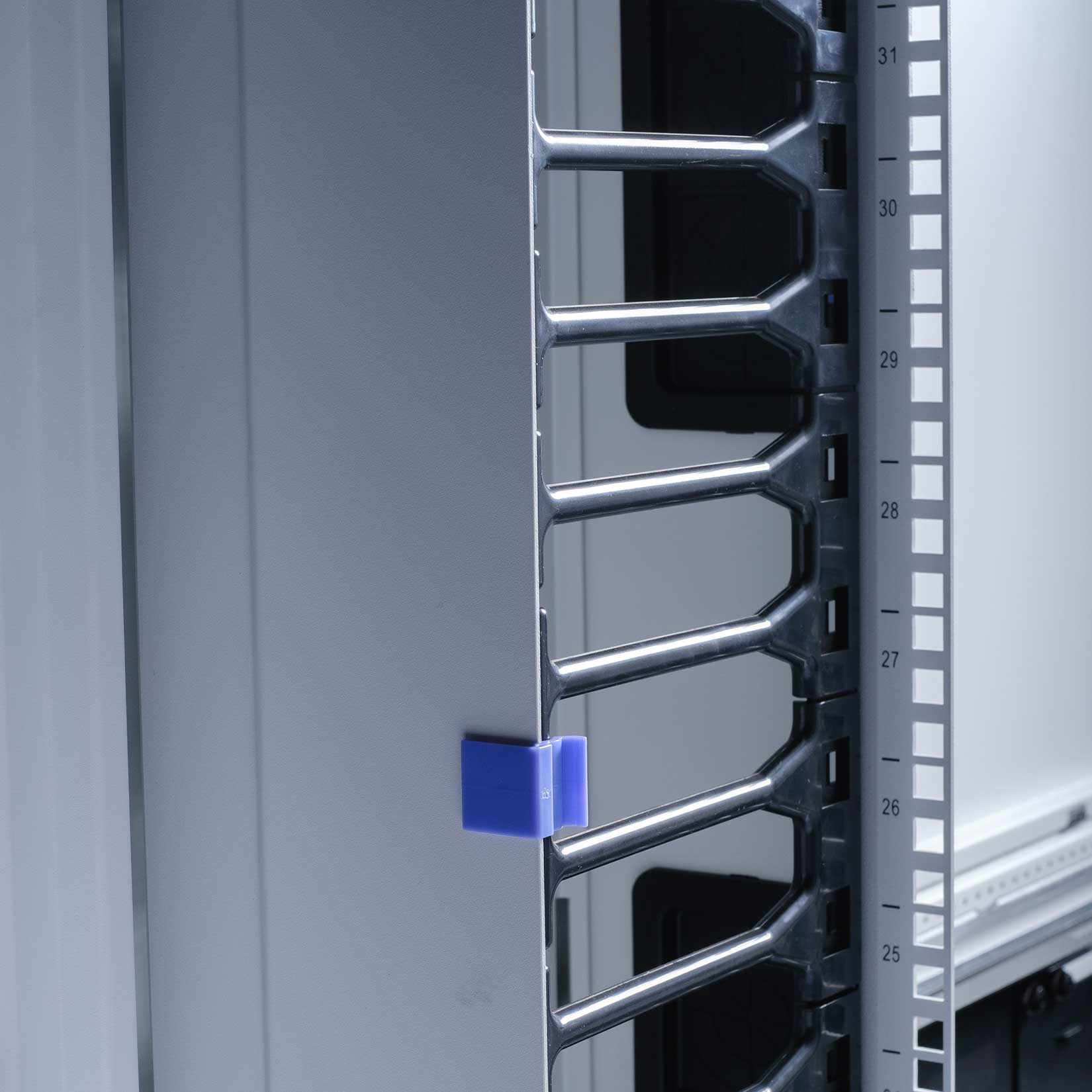

We offer multiple vertical cable manager options, with many featuring toolless installation and removal. The lashing panel supports cable bundles and minimizes strain on cable terminations. A horizontal cable trough (31.5″/800 mm cabinet) provides a front-to-rear cable pathway.
Featuring static load ratings of 4,000 lb (1,814 kg) and dynamic load ratings of 3,000 lb (1,361 kg), InfiniRacks are designed to accommodate ever-growing densities.
The cabinets come standard with four heavy-duty 2.5” swivel casters and leveling feet, offering easy transport and making on-site deployment simple and easy.
Brush panels allow cable passthrough while mitigating leakage of hot exhaust air, an optional air dam kit seals gaps around the perimeter of the front mounting rails, and 31.5″ (800 mm) wide cabinets include grommet-sealed cable openings in the equipment rails.
With a low-profile frame design and integrated dual PDU channels, InfiniRacks are engineered to maximize internal usable space. They offer 1.6″ (40 mm) more width and 3.9″ (100 mm) more depth than any cabinet we’ve manufactured before.
The cabinets ship preassembled with any accessories already installed in customer-specified locations. Eliminate the issues of staggered component delivery, wasted packaging, and on-site assembly with InfiniRack.
With millions of possible configurations, the InfiniRack is anything but standard. Explore a selection of options below and get in touch to learn about the entire suite.
It’s no secret that the global supply chain has been unpredictable for some time now. Lengthy delays in order procurement have become the norm. We’re working to correct that. InfiniRack ships fully assembled, so you don’t have to wait for various components to arrive at different times. Additionally, we’re keeping our warehouses fully stocked for efficient delivery.
The data center landscape is shifting. We know this firsthand because we work with the biggest names in the industry. The InfiniRack was developed to adapt to a growing range of applications and environments. A “one size fits all” just won’t cut it anymore. InfiniRack offers millions of unique configuration options. We’ll work with you to ensure you get the perfect solution.
When it comes to modern data center environments, efficiency, time to value, and adaptability spell success, the InfiniRack was designed with these three factors top of mind. It maximizes efficiency with superior cable management, airflow, and space utilization. It ships preassembled with any accessories already installed and four heavy-duty swivel casters built-in allowing for quick deployment. And it features easily-adjustable, well-marked equipment mounting rails and PDU mounting brackets, allowing for maximum adaptability.
23.6″ (600 mm) wide cabinets traditionally leave little room for cable management, and their vertically-mounted PDUs often obstruct equipment access. With dual integrated PDU channels and a low-profile frame design, InfiniRack reduces the chance that PDUs will obstruct equipment access and maximizes available internal space. It’s designed to allow for easy field maintenance and reconfiguration of rack-mounted equipment and promotes efficient airflow and cable management.
As a complete data center and IT infrastructure provider, we offer a number of other critical components. We can load your cabinet up with a variety of rack mount shelves, PDUs, power cords, and more. We also offer custom aisle containment solutions and a variety of other types of racks and cabinets.
